Customized Double Girder Overhead Crane Manufacturer Bridge Crane 200 Ton
It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. High lifting capacity of this crane is designed with two hooks that means two independent sets of hoisting mechanism. The main hook is used to lift heavy objects while the auxiliary used to lift light objects,the auxiliary can also be used for collaborative main hook tilting or tipping the material. However, don't use the two hooks to lift at the same time when goods weight is over the auxiliary rated capacity.

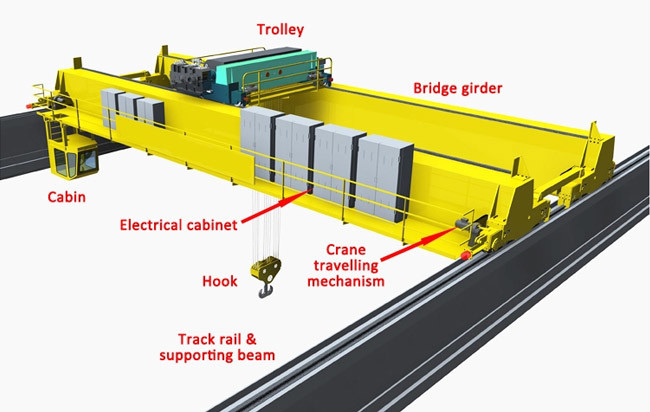

QB Double Girder Traveling Industry Overhead Crane For Sale is composed of box type bridge frame,lifting trolley, crane traveling mechanism, and electrical system. It is an excellent choice where high speeds and heavy service are required. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.
| Bridge crane Feature Double Girder Overhead Crane 5ton 10ton 20 ton Price |
| model | QD | also can make QE |
| load capacity | 10-50 tons | customized |
| span | 10-31.5 meter | customized |
| lifting height | 6-16 meter | customized |
| working class | A5-A8 | customized |
The double-beam bridge crane is an important tool and equipment for mechanization and automation of the production process in modern industrial production and lifting and transportation. Therefore, double-beam bridge cranes are widely used in departments and places such as indoor and outdoor industrial and mining enterprises, steel and chemical industries, railway transportation, port terminals, and logistics turnover.
